23ft x 16ft Multi Colour A-Frame Side Slide Combo

    £0.00
    £1,595.00
    (£1,914.00 inc VAT)
    Availability: Made To Order
    Code:AJ1630
    Quantity
    Add To Your Wishlist
     OR

    Send to a friend

    Recommend this to a friend by entering their email address in the box below.


    Includes:

    • Blue tick Blower
    • Blue tick EN14960 Test Certificate
    • Blue tick EN14960 Steel Pegs
    • Blue tick Groundsheet
    • Blue tick Digitally Printed Artwork
    • Blue tick Name & Number Banner
    • Blue tick 12 Months Warranty

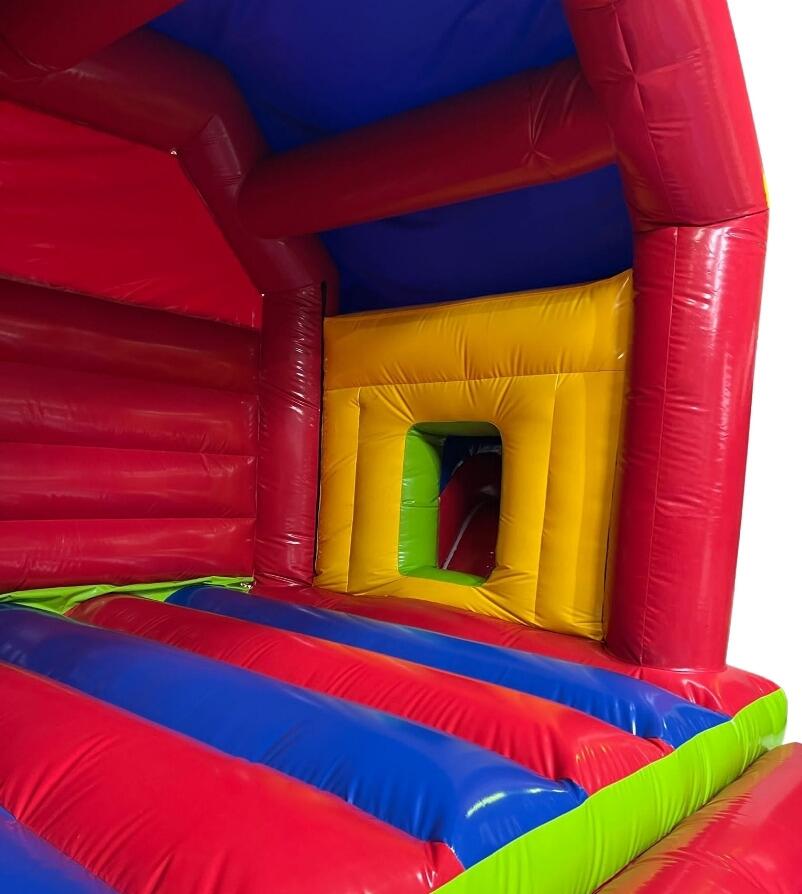

    This adult capable A-Frame bouncy castle is manufactured for both adults and kids. The wall heights are 1.8m meaning any user height is acceptable. There is an enormous amount of bouncing space for this unit and it is available to buy in any theme or colour. This item is a 15ft x 16ft A-Frame with a side slide combo making the size 23ft x 16ft

    View videoView video
    Earn 1595
    Reward points

    If you are ordering an inflatable (e.g. bouncy castle, assault course, slide combo etc) there are several ways to order.

    ORDERING IN STOCK ITEM

    If the item is in stock, you can either:

    1.  Order directly on our website using the order now button and choose delivery or collection.
    2. Pay a deposit using the pay deposit button. This option is for:
    • Reserving the item if you want to pay at a later date.
    • Adding the item to your order that includes other items that require manufacturing
    • Paying a deposit for this item but you would like it manufacturing with some customisation (e.g. different colours). This option is subject to lead times.


    ORDERING MADE TO ORDER ITEM

    If the inflatable or bouncy castle you want requires manufacturing then you can use the pay deposit button.

    Items that are made to order will be subject to a lead time, this is dependant upon the product, if you would like to find out the current lead time please get in touch, normally it is around 2-4 weeks, however during busy periods (e.g the summer season) this can extend.

    If you require some customisation such as change of colours or theme, you can either add this on the note add checkout or get in touch with us via phone call on +44 151 487 3336 or email at info@ajluk.com

    You can read more on customisation below.


    DATA SHEET
    Size (W x L x H)
    		23ft x 16ft x 13ft
    Weight
    		120kg
    Packed Dimensions
    		1.2 x 0.9 x 0.9m
    Blower Required
    		2hp
    Minimum Pressure
    		1 kPa
    Standards
    		BS EN 14960
    Features
    		Central support bar, nylon webbed beds, deflation zip
    Colours
    		Red, Green, Yellow, BLue
    Material Finish
    		Gloss
    Design CodeMH10018
    Comes with

    Blower
    		2hp
    Steel Ground Pegs
    		17 x 400mm x 12
    Ground Tarpaulin
    		12ft x 18ft
    Test Certificate
    		12 Months Manufacturers Test
    USER HEIGHTS

    Up to 1m
    		10
    Up to 1.2m
    		8
    Up to 1.5m
    		7
    Up to 1.8m
    		6
    CONFORMITY

    Anchor Points
    		8 x Steel D-Ring
    Thread
    		Anti-Rot Bonded Nylon EN14960, Stitching size 3-8mm
    Blower Distance
    		1.2m / Contained Rear Fall Off
    Wall / Towers
    		Stable / Less than 5 degrees
    Inside Wall Heights
    		1.8m
    Step / Ramp
    		1.5m
    Grounding
    		85kg+
    Sharp / Raw Edges
    		NONE
    Fall Off Height Bed
    		0.98m
    Fall Off Height Step
    		0.57m
    Trough Depth
    		200mm / 940mm
    Entrapments
    		NONE
    Markings / Identification
    		Serial Number / User Heights
    Pressure (kPa)
    		Must be above 1 - Normal reading usually 1.5
    Artwork
    		N/A
    Zips
    		Freely moving and covered

    We use a variety of materials for the manufacturing of our bouncy castles and inflatables at AJL.

    All items are manufactured in accordance with EN14960 which means any material used in

    the integral structure of any inflatable will have the minimum specification of the below.

    Fabric

    Type
    		610gsm PVC Knife Coated Fabric
    Minimum Tensile Strength
    		1850 N
    Minimum Tear Strength
    		350 N
    Minimum Coating Adhesion
    		100 N
    Flame Retardancy
    		B1, B2, M2
    Standards
    		BS5438, BS5867, EN71, B2, M2, EN14960
    Features
    		RoHS and Phthalate Free

    We offer finance on our Inflatable products. For more information on finance, please click here.

    Whether you are looking to finance a startup package, add to your fleet or purchase a bouncy castle for private use, our finance is perfect for you.

    Our bouncy castles, slide combos, slides, obstacle courses and all other types of inflatable can be customised to meet your requirements.

    Some of our popular choices of customisation include:

    • Changing PVC colours
    • Changing PVC finish (cape or gloss finish)
    • Adding fitted velcro for interchangeable artwork
    • Adding disco light and speaker pockets or compartments
    • Custom bespoke branding

    Plus many more options to choose from, if you would like to learn more about what customisation you can do, please click here.

    Quick Enquiry Form

    Related products

    New!

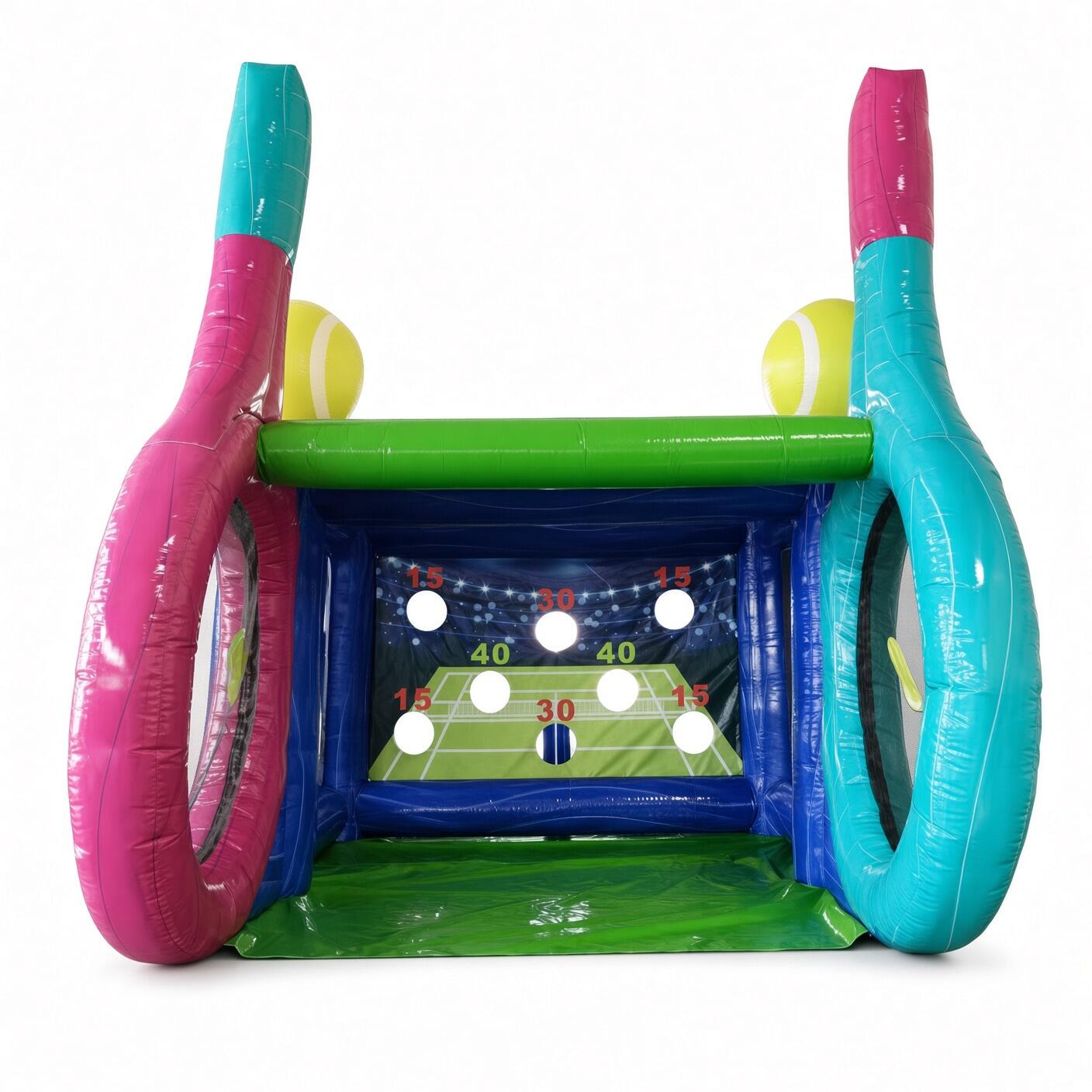

    Inflatable Tennis Game
