82ft Obstacle Course XTREME
Send to a friend
Recommend this to a friend by entering their email address in the box below.
Includes:
EN14960 Test Certificate
EN14960 Steel Pegs
Groundsheet
12 Months Warranty
Blowers

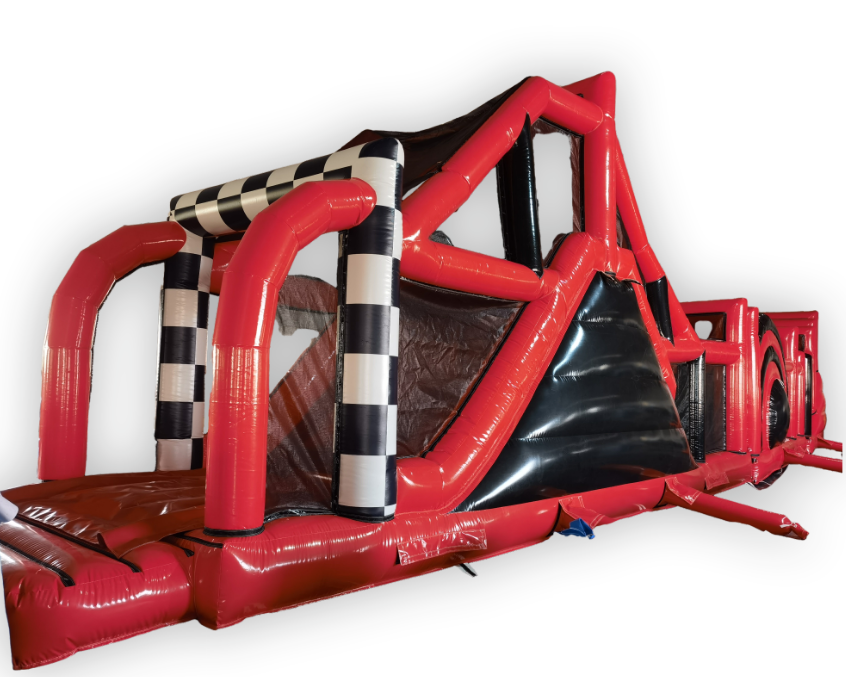

Introducing the 82ft Obstacle XTREME – the ultimate inflatable challenge for thrill-seekers and adventure enthusiasts! This massive obstacle course is designed to test your agility, speed, and endurance across three exhilarating sections.
The journey begins with a series of tunnels and barriers that will push your limits. Next, conquer the towering climbing wall, a true test of strength and determination. Finally, race through the final stretch of slides and obstacles to claim victory.
Crafted from high-quality materials, the Obstacle XTREME ensures safety and durability, making it perfect for events, parties, or team-building activities. Its bold red and black design adds a striking visual appeal, making it a centerpiece attraction.
Get ready to challenge yourself and others with this action-packed inflatable course. Are you up for the XTREME challenge?
The obstacle course is in 3 parts.
Obstacle Course Layout:
- Entrance; climb up the challenging first slide with hanging obstacles to push your limits
- Move on by sliding down the first slide standing at a platform height of 7.5ft
- Battle through a row of Pop-up biff bash
- Choose to go over or under the cross
- Hop through the hoops to face the next challenge
- Manoeuvre the pop up X's to tackle the innovative climbing wall
- Use the blocks to climb up and down the climbing wall (emergency exit at the starting side)
- After making across the wall, take on the tunnel crawl through and hop through the hoops on exit
- Finally, take on the HUGE 9ft platform slide and slide down to victory.
If you are ordering an inflatable (e.g. bouncy castle, assault course, slide combo etc) there are several ways to order.
ORDERING IN STOCK ITEM
If the item is in stock, you can either:
- Order directly on our website using the order now button and choose delivery or collection.
- Pay a deposit using the pay deposit button. This option is for:
- Reserving the item if you want to pay at a later date.
- Adding the item to your order that includes other items that require manufacturing
- Paying a deposit for this item but you would like it manufacturing with some customisation (e.g. different colours). This option is subject to lead times.
ORDERING MADE TO ORDER ITEM
If the inflatable or bouncy castle you want requires manufacturing then you can use the pay deposit button.
Items that are made to order will be subject to a lead time, this is dependant upon the product, if you would like to find out the current lead time please get in touch, normally it is around 2-4 weeks, however during busy periods (e.g the summer season) this can extend.
If you require some customisation such as change of colours or theme, you can either add this on the note add checkout or get in touch with us via phone call on +44 151 487 3336 or email at info@ajluk.com
You can read more on customisation below.
DATA SHEET | |
---|---|
Size W x L x H | 10ft x 82ft x 15ft |
Weight | 320kg (Across 3 parts) |
Packed Dimensions | 1.5 x 1 x 1m x 4 |
Blower Required | 2hp x 4 |
Minimum Pressure | 1 kPa |
Standards | BS EN 14960 |
Features | Biff Bash, Crawl Through, Obstacles, Slide, Climbing Wall |
Comes with | |
---|---|
Blower | 2hp x 3 |
Steel Ground Pegs | 17 x 400mm x 34 |
Ground Tarpaulin | 12ft x 18ft x 4 |
Test Certificate | 12 Months Manufacturers Test |
USER HEIGHTS | |
---|---|
Up to 1m | 20 |
Up to 1.2m | 20 |
Up to 1.5m | 20 |
Up to 1.8m | 20 |
CONFORMITY | |
---|---|
Anchor Points | 6 x Steel D-Ring |
Thread | Anti-rot Bonded Nylon EN14960, Stitching size 3-8mm |
Blower Distance | 1.2m / Contained Rear Fall Off |
Wall / Towers | Stable / Less than 5 degrees |
Inside Wall Heights | 1.25m |
Step / Ramp | 1.08m |
Grounding | 85kg+ |
Sharp / Raw Edges | NONE |
Fall Off Height Bed | 0.67m |
Fall Off Height Step | 0.5m |
Trough Depth | 170mm / 600mm |
Entrapments | NONE |
Markings / Identification | Serial Number / User Heights |
Pressure (kPa) | Must be above 1 - Normal reading usually 1.5 |
Artwork | Digitally Printed |
Zips | Freely moving and covered |
We use a variety of materials for the manufacturing of our bouncy castles and inflatables at AJL.
All items are manufactured in accordance with EN14960 which means any material used in
the integral structure of any inflatable will have the minimum specification of the below.
Fabric | |
---|---|
Type | 610gsm PVC Knife Coated Fabric |
Minimum Tensile Strength | 1850 N |
Minimum Tear Strength | 350 N |
Minimum Coating Adhesion | 100 N |
Flame Retardancy | B1, B2, M2 |
Standards | BS5438, BS5867, EN71, B2, M2, EN14960 |
Features | RoHS and Phthalate Free |
We offer finance on our Inflatable products. For more information on finance, please click here.
Whether you are looking to finance a startup package, add to your fleet or purchase a bouncy castle for private use, our finance is perfect for you.
Our bouncy castles, slide combos, slides, obstacle courses and all other types of inflatable can be customised to meet your requirements.
Some of our popular choices of customisation include:
- Changing PVC colours
- Changing PVC finish (cape or gloss finish)
- Adding fitted velcro for interchangeable artwork
- Adding disco light and speaker pockets or compartments
- Custom bespoke branding
Plus many more options to choose from, if you would like to learn more about what customisation you can do, please click here.
